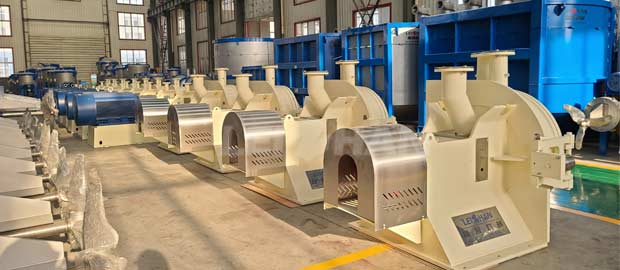

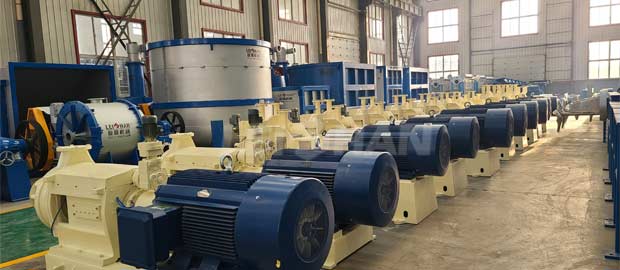

RF Series Double Disc Refiner

CONTACT US

    DD Series Double Disc Refiner is used for continuously pulping chemical wood pulp,mechanical pulp,and recycled pulp under consistency of 3%-5% ,which is an ideal pulping equipment.

    >> PDF Download


    • Technical Data
    • Features
    • Working principle
    • Service

    Technical Data of RF Series Double Disc Refiner Screen:

    Type

    RF20 RF26

    RF34

    RF42 RF52

    Disc diameter (mm)

    20-24 26-30 34-38 42-48 52-58

    Range of op.consistency (%)

    3.5-6.0
    Min.flow (L/Min 4%) 400 700 1400 2200 6000

    Max.flow(L/min 4%)

    2400 4500

    9000

    16000 22000

    Max.power(KW)

    315 500

    900

    1700 3000

    • 1. Mainly used for pulping,improving slurry beating degree to meet the paper making needs.
    • 2. It can be installed variety tooth refiner plate. Suitable various raw materials such as wood pulp, mechanical pulp, chemical pulp, waste paper pulp, etc.
    • 3. Adopt constant power control system , beating effect is stable.
    • 4. Accurate retract mechanism , easy to control, the beating effect is good.
    • It can be installed variety tooth refiner plate. Suitable various raw materials such as wood pulp, mechanical pulp, chemical pulp , waste paper pulp, etc.
      Adopt constant power control system. Accurate retract mechanism , easy to control, the beating effect is good.
    • services1.Offering comprehensive technical and business consultation services;
      2.Proposing the most suitable scheme and equipment for our clients;
      3.Designing and fabricating targeted products according to the special requirements of clients;
      4.Training periodically high qualified service technician.
