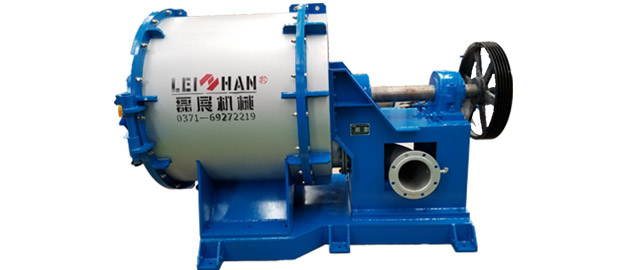

ZDFD Series Single Effect Fiber Separator

CONTACT US

    ZDFD series single effect fiber separator is used for secondary breaking and screening of waste paper pulp in paper pulp system, meanwhile, separating the light and heavy impurities from the pulp. The screen plate hole of the device can be increased, which improves the production capacity.

    >> PDF Download


    • Technical Data
    • Features
    • Working principle
    • Service

    Technical Data of PZ Series Reject Separator:

    Type ZDFD2 ZDFD3 ZDFD4 ZDFD5 ZDFD6 ZDFD7
    Production Capacity (t/d) 50-70 80-120 180-250 280-360 300-400 400-500
    Concentration of Input Pulp(%) 2-4
    Pressure of Input Pulp (Mpa) 0.15-0.20
    Pressure difference (Mpa) 0.03-0.05
    Power of motor (Kw) 45 55 75-90 160 200 280

    • 1. Mainly used for secondary breaking and screening of waste paper pulp, meanwhile, separating the light and heavy impurities from the pulp. It also can be used as tail pulp treatment equipment.
    • 2. Specially designed impeller can break fiber effectively and it is good for the separate and remove light and heavy impurities.
    • 3. Automatically discharge according to requirement, run reliably.
    • ZDFD Series single effect fiber separator machine is a combination of one sealed horizontal hydrapulper and a light & heavy impurity remover. It adopts drum and turbo structure so it has higher efficiency. With compact structure, high efficiency, it has functions such as pulp beating, impurity removing, coarse screening etc, thus simplifies the process of dealing with wasted paper greatly, and reduces the energy consumption.
    • services1.Offering comprehensive technical and business consultation services;
      2.Proposing the most suitable scheme and equipment for our clients;
      3.Designing and fabricating targeted products according to the special requirements of clients;
      4.Training periodically high qualified service technician.
