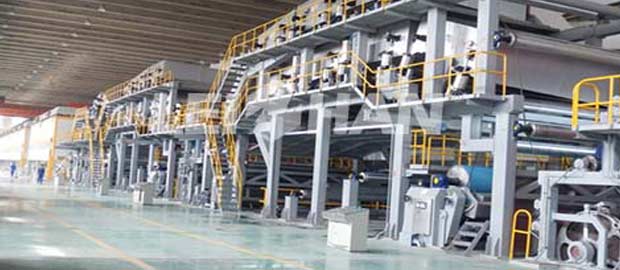

3250mm coating paper machine is a papermaking device that coats the surface of base paper with coatings to improve the surface properties of the paper and produces coated paper, which is widely used in printing, packaging, office supplies, and special industries.



3250mm Coating Paper Machine Technical Data



Paper type: Coating paper
Basis weight: 80-250g/m²
Trimmed width: 3250mm
Effective pressure roller surface width: 3250mm
Frame/bearing/bottom rail center distance: 4500mm
Linear pressure: 20-250KN/m
Design speed: 350m/min
Operating speed: 300m/min
Dynamic balancing speed: 400m/min
Hard roller diameter: ￠800mm
Hard roller surface hardness: HSD85±1
Maximum roller surface temperature: 200℃
Soft roller diameter: ￠630mm
Coating layer hardness: SHRD91±1°
Total thickness of the coating layer: 12.5mm



3250mm coating paper machine can be provided by our company. Welcome to contact us for more details. Email address: leizhanchina@gmail.com.
