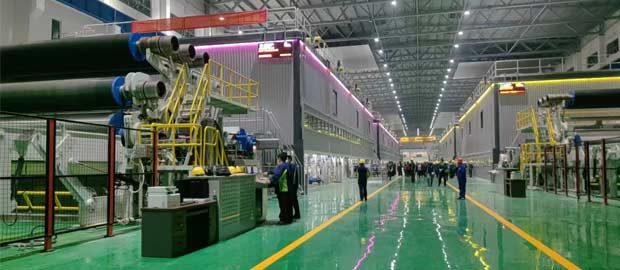

5600mm Three Layer Fluting Paper Machine

The 5600mm three layer fluting paper machine is a high-efficiency, high-performance specialized papermaking equipment. It uses three forming wires to simultaneously form three layers of paper webs with different pulp compositions, and then combines them into a single sheet of high basis weight, high strength industrial paperboard (mainly linerboard).



Technical Data of 5600mm Three Layer Fluting Paper Machine



Product Type: Fluting/ Corrugated Board
Papermaking Quantity: 70-160g/m²
Sizing: 4-6g/m²
Trimmed Width: 5600mm
Roll Width: 5660mm
Wire Width: 6250mm
Headbox Lip Width: 6050mm
Working Speed: 780m/min
Transmission Speed: 800m/min
Dynamic Balancing Speed: 1000m/min
Roll Roll Dynamic Balancing Speed: 2500m/min
Crawling Speed: 25m/min
Gauge: 7400mm



The 5600mm Three Layer Fluting Paper Machine is significantly different from ordinary single-wire paper machines and paper machines that produce corrugated core paper, representing the high-end manufacturing level in the packaging paper industry. If you want to know more about fluting paper machine, please feel free to contact us. Email address: leizhanchina@gmail.com.
