Fourdrinier Paper Machine Installation Procedures

To ensure the quality of equipment installation, effectively improve equipment operating rate, and achieve the designed output capacity, it is crucial that fourdrinier paper machines follow a specific installation procedure, regardless of whether they are multi-wire, three-wire, or four-wire machines.



Before construction, the fourdrinier paper machine should have an installation organization design to determine the construction plan. The general installation procedures are as follows.

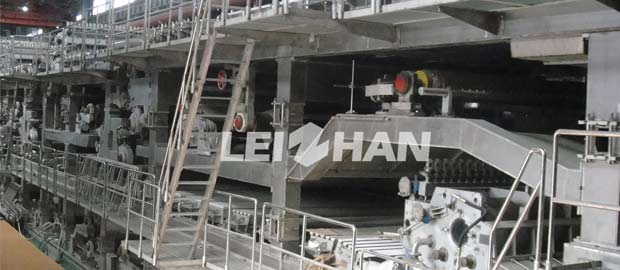

Fourdrinier Paper Machine Installation Procedures



1. Determine the installation baseline and find the centerline of the foundation plate;
2. Install the foundation plate and assemble the frame;
3. Assemble the wire part;
4. Assemble the press part (the press rollers should be balanced and the eccentricity should be consistent);
5. Assemble the first group of drying cylinders;
6. Assemble the second group of dryer cylinder parts;
7. Assemble the third group of dryer cylinder parts;
8. Assemble the sizing machine;
9. Assemble the reeling part;
10. Assemble the transmission part (including gearbox, reducer, coupling, cardan shaft, and motor).
