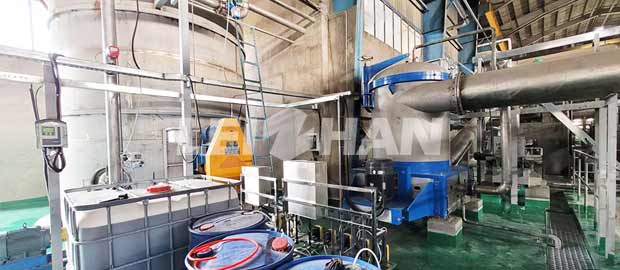

LOCC Pulp Production Line

Unit LOCC pulp production line machine can be provided by Leizhan paper machinery company. Pulp machine include pulper machine, pressure screen, cleaner machine, refiner machine and conveying machine, etc. One client intend to set LOCC pulp production line, its capacity is 225/24h.



LOCC Pulp Production Line Machine Details



Chain Conveyor: 1600mm
D Type Hydrapulper: 25m³, h=12mm
Hydrapurger: h=10mm, C=4~5%
Drum Screen: Ø1500mm
Ragger: 0~60m/h
Rope Cutter: Cutting the rope with a maximum diameter is 600mm
Grapple：0.08m³
High Density Cleaner: Q=8000～12000l/min, C=3～5%
Middle Consistency Coarse Screen: H=2.4mm, C=3~4%
Light Impurity Separator: Volume1.5m³,h=4.0mm
Reject Separator: Ø380mm, C=0.8~1.2%
Low Density Cleaner: 450l/min, C=1.5~1.8%
Fine Screen: A=3.0m²，s=0.22mm
Disc Thickener: Filter area 150㎡, outlet consistency= 3~6%
Double Disc Refiner: Ø660mm, C=3~5%



Unit LOCC pulp production line machine for sale, contact us for more details. Email address: leizhanchina@gmail.com.
