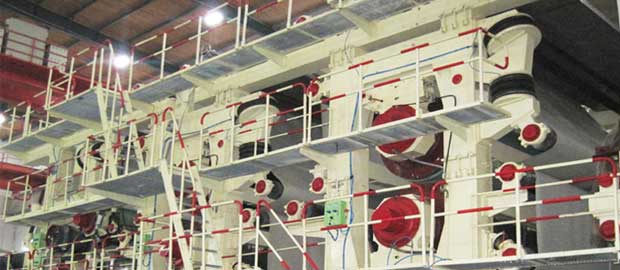

The 5200mm double wire corrugated paper machine is mainly used for producing high-strength corrugating medium and other grades of paper with basis weights ranging from 80 to 270 g/m². All products are supplied in roll form.



5200mm double wire corrugated paper machine consists of a double-layer forming section, press section, drying section, size press, reel section, drive system, foundation components, machine hood, electrical control system, lubrication system, and rope threading system.



Main Technical Parameter of 5200mm Double Wire Corrugated Paper Machine



Main products: High-strength corrugated medium, T-paper, etc.
Basis weight range: 80–270g/m²
Trimmed width: 5200mm
Production capacity: 400t/d
Operating speed: 500m/min
Design speed: 550m/min
Dynamic balancing speed: 650m/min
Wire width: 5600mm
Headbox lip width: 5550mm
Rail gauge: 6400mm
Drive system: Sectional drive with AC motor variable-frequency control
Raw material: LOCC (Recycled Old Corrugated Containers)
