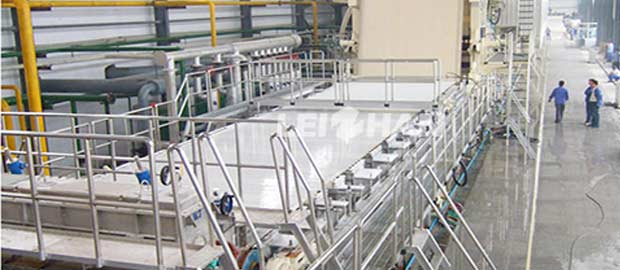

2640/500 Fourdrinier Writing Paper Machine

The 2640/500 fourdrinier writing paper machine is a papermaking machine for producing writing paper and newsprint with 40-80g/㎡. The fourdrinier writing paper machine consists of a wire forming section, a press section, a drying section, a reeling machine, a foundation section, and paper machine auxiliary systems.



2640/500 Fourdrinier Writing Paper Machine Structure Details



1. Wire Forming Section: Air cushion headbox for sizing, single-layer long wire forming.
2. Press Section: One vacuum suction transfer, one four-roller three-pressure zone compound pressing.
3. Drying Section: 29 Φ1800mm drying cylinders, 13 Φ1500mm VAC cylinders.
4. Reeling Section: Horizontal reeling machine.



2640/500 Fourdrinier Writing Paper Machine



Main Product: Writing Paper/ Newsprint Paper
Raw Material: 70% Mechanical Pulp, 30% Wood Pulp
Basis Weight: 40-80g/㎡
Trimmed Width: 2640mm
Working Speed: 450m/min
Design Speed: 500m/min
Crawling Speed: 25m/min
Dynamic Balancing Speed: 600m/min
Headbox Lip Width: 2990mm



A complete writing paper production line machine can be provided by our company. Email address: leizhanchina@gmail.com.
