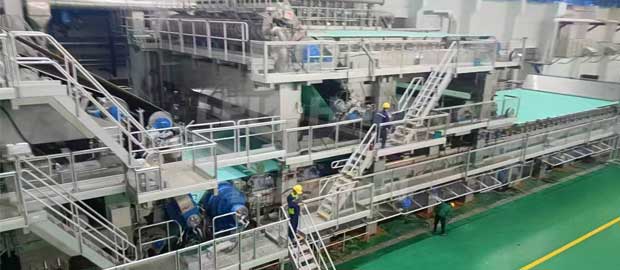

3200mm Kraft Paper Making Machine

3200mm kraft paper making machine is composed of wire part, press part, drying part and reeling part. The final paper product are 80-90g/㎡ kraft paper.



Main Structure of 3200mm Kraft Paper Making Machine



1. Wire Part: The pulp is fed into the open flow box for forming, with three-layer wire mesh.
2. Press Part: One K-press, one double-blanket large-diameter roller press.
3. Drying Part: 14 pieces, Φ1800mm. Arrangement: 6+8+two-roll calendering.
4. Reeling Part: Horizontal pneumatic.



Technical Parameters of 3200mm Kraft Paper Making Machine



Paper type: kraft paper
Raw material: wood pulp, OCC
Basis weight: 80-90g/㎡
Trimmed width: 3200mm
Roll paper width: 3260mm
Designed speed: 280m/min
Balanced speed: 400m/min
Working speed: 250m/min
Crawling speed: 25m/min
Gauge: 4300mm



Leizhan company supply unit kraft paper production line machine, Welcome to contact us for more details. Email address: leizhanmachine@gmail.com.
