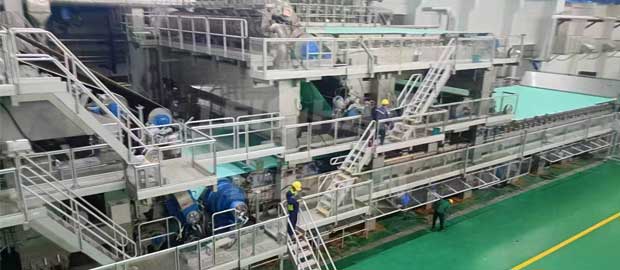

5000mm Kraft Board Paper Machine

The 5000mm Kraft Board Paper Machine consists of a three-layer wire forming section, a pressing section, a drying section, a sizing section, a paper winding section, a transmission section, a base section, and a steam hood section.



The wire section uses a three layer wire forming system and employs an air-cushion headbox for sizing. The press section consists of one vacuum press and two large-diameter roll presses. The drying section uses four drying cylinders. The reeling section uses a horizontal pneumatic reeling machine. The drive system uses a distributed drive system with AC frequency conversion speed control.



5000mm Kraft Board Paper Machine



Paper making type: kraft board paper
Trimmed width: 5000mm
Paper roll width: 5060mm
Headbox lip width: 5400mm
Basis weight: 127-300g/m²
Design speed: 500m/min
Operating speed: 350-440m/min
Transmission speed: 500m/min
Balance speed: 550m/min
Crawling speed: 25m/min
Capacity: 400t/d
Gauge: 6300mm



Leizhan supply high efficiency 5000mm kraft board paper machine, please contact us for more details. Email address: leizhanchina@gmail.com.
