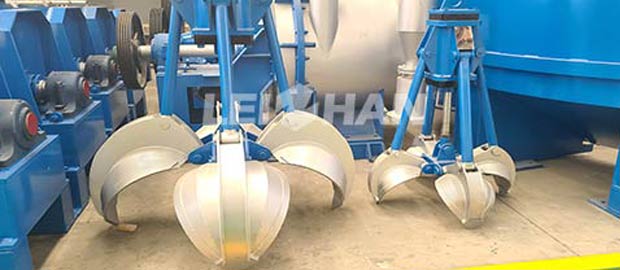

Paper Pulp Grapple

Waste paper recycling machine paper pulp grapple is used for grabbing large impurities from sediment well or used in conjunction with lifting equipment, it can periodically remove impurities from the hydrapulper.



The Structure of Paper Pulp Grapple



1. The grapple is composed of two bucket flaps, cylinder, tie rod, upper and lower support seat, lifting ring seat, pin shaft, cylinder fixed shell, hinge and so on.



2. The auxiliary device consists of a pneumatic triplet, a two-position four-way solenoid directional valve, and a gas source. The gas is cleaned and misted by the pneumatic triplet before entering the cylinder. The piston rod, via a hinge mechanism, drives the bucket flaps to rotate. Closing the valves grabs impurities, while opening them releases them.



Waste paper recycling production line grapple for sale. Contact us for more details. Email address: leizhanchina@gmail.com.
