4300mm multi wire multi cylinder paper making machine to make 100-300g/㎡ kraft paper. One of our customers has ordered a 4300mm kraft paper making machine from our company.

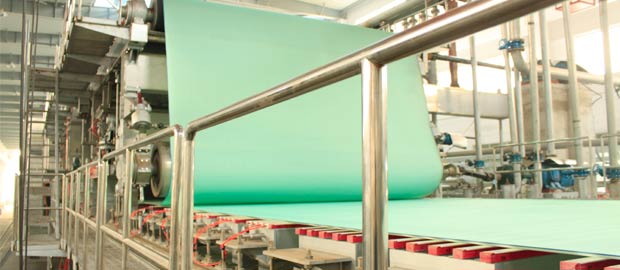

The 4300 mm kraft paper making machine features an air-cushion headbox, a multi-layered wire forming section, and a press section equipped with one vacuum transfer device, one vacuum press, and two large-diameter roll presses, all driven by a hydraulic pressure system. The drying section employs a square-box frame structure with excellent ventilation performance, and the machine is fitted with a semi-open steam hood.



4300mm Kraft Paper Making Machine Details



Main Products: Kraft Paper
Output: 300T/D
Basis Weight: 100-300g/m²
Trimmed Width: 4300mm
Design Speed: 350m/min
Operating Speed: 300m/min
Crawling Speed: 25m/min
Balancing Speed: 400m/min
Track Gauge: 5400mm
Floor Layout: Double Layer
Pulp Ratio: 100% Waste Paper



Any more details about 4300mm kraft paper making machine, please feel free to contact us. Email address: leizhanchina@gmail.com.
