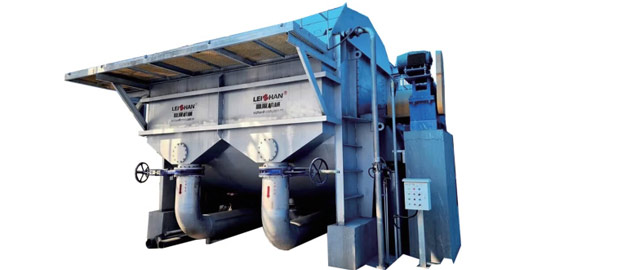

Disc thickener is used in waste paper recycling production line to wash and thicken for low consistency pulp. The paper mill disc thickener combined disc type filter drum increases the filter area greatly, less space requirement, but large production capacity.



Main Specification of Disc Thickener



1. Diameter of disc: 2500-3500mm
2. Amount of disc: 8-16
3. Nominal area: 60-240㎡
4. Concentration of input pulp: 0.8-1.2%
5. Concentration of output pulp: 3.5-4.5%
6. Processing capacity: 0.9-2.4t/㎡/d
7. Motor power: 11-30kw



Leizhan paper machinery company supply high efficiency paper mill disc thickener, welcome to contact us for more details. Email address: leizhanchina@gmail.com.
