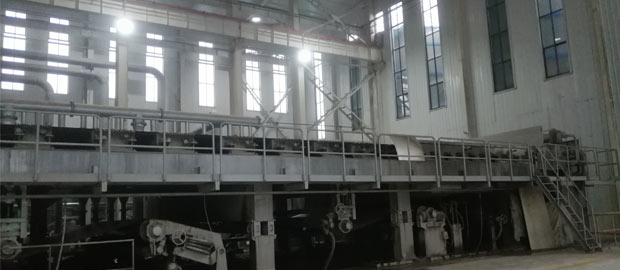

4300/500 Corrugated Paper Making Machine

4300/500 corrugated paper making machine to make 80-240g/㎡ corrugated paper/ T-paper. The corrugated paper machine is formed by multi wire forming part, press part, drying part, reeling machine, calender, base section, paper machine auxiliary systems.



4300/500 Corrugated Paper Making Machine Details



Raw material: recycled carton box
Papermaking varieties: corrugated paper/ T-paper
Basis weight: 80-240g/m²
Trimmed width: 4300mm
Capacity: 300t/d
Rolled paper width: 4360mm
Headbox lip width: 4650mm
Design speed: 500m/min
Balance speed: 600m/min
Working speed: 400-450m/min
Crawling speed: 25m/min
Gauge: 5500mm



If you want to know more about 4300/500 corrugated paper making machine, please feel free to contact us. Email address: leizhanmachine@gmail.com.
