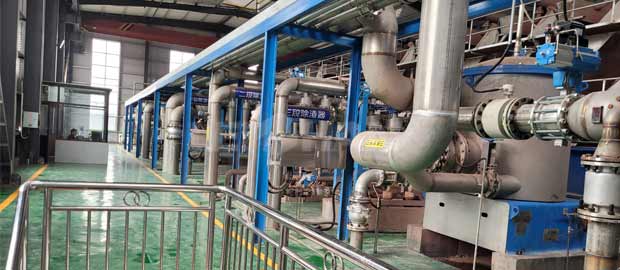

Whiteboard Pulping Project

A complete whiteboard pulping project include pulp pulper machine, pulp screening machine, pulp cleaning machine, pulp cleaning machine. Whole set whiteboard paper making line can be provided by our company.



Whiteboard Pulping Project Wood Pulp Processing Line



Chain Conveyor: working width: B=1400mm
Middle Consistency Hydrapulper: 20m³, h=Ø18mm
Wood Pulp High Density Cleaner: Q=2500l/min, C=3～5%
Double Disc Refiner: Ø660mm



Whiteboard Pulping Project Liner Pulp Production Line



High Consistency Hydrapulper: Volume 15m³
Hydrapurger: h=10mm, C=3~5%
Drum Screen: Ø1500mm
High Density Cleaner: Q=2000~3500l/min
Middle Consistency Coarse Screen: A=0.91m²
Light Impurity Separator: Ø4.5mm
Vibrating Screen: C=1~2%, Ø3mm
Low Density Cleaner: 400l/min, C=1.0%
Fine Screen: f=0.15mm, C=0.9~1%
Double Disc Refiner: Ø550mm, C=3~5%



Welcome to contact us for more details about whiteboard pulping project. Email address: leizhanchina@gmail.com.
