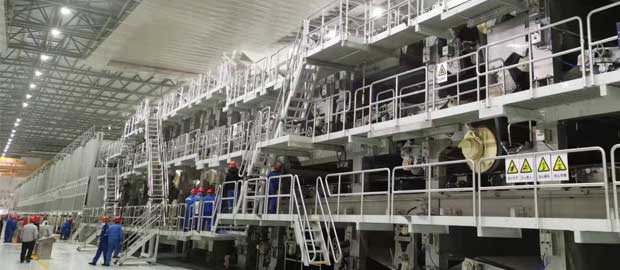

The 4200mm fluting paper machine wire section uses a double-layer wire (headbox with dilution water) – Φ700 vacuum suction transfer – four-roll three-press – the drying section consists of 25 sets of Φ1800 drying cylinders / 7 sets of Φ1500 Vac cylinders. The drying cylinders are arranged as 1+3/3+4/4+8+sizing machine+air diverter+1+8 – calender – B/M meter – roller-type cylindrical paper rewinder.



Technical Data of 4200mm Fluting Paper Machine



Raw material: waste paper
Trimmed width: 4200mm
Basis weight: 70-160g/㎡
Maximum paper width: 4260mm
Wire width: 4750mm
Sprue width: 4600mm
Operating speed: 450m/min
Design speed: 500m/min
Dynamic balancing speed (m/min): 550
Production capacity (t/d): 250



Any more technical details about 4200mm fluting paper machine, welcome to contact us for more detais. Email address: leizhanchina@gmail.com.
