The 4400mm corrugated paper machine features two air-cushion headboxes and a twin-wire forming section. The press section utilizes vacuum pickup and a composite press configuration (four rolls, three nips) with hydraulic loading and cantilevered felt changing capabilities, supported by hydraulic and accumulator systems. The dryer section employs a multi-point enclosed small-gear drive system and includes an enclosed hood, circulating oil lubrication, a sheet threading system, a reel, and an unwind stand.

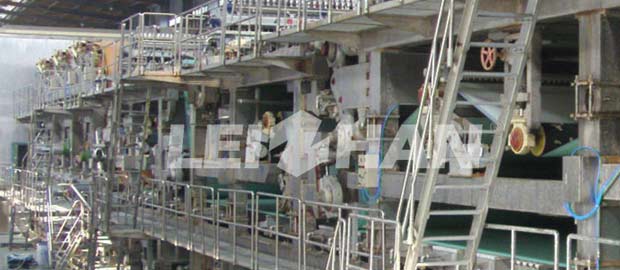

4400mm Corrugated Paper Making Machine Technical Data



Product Varieties: High-strength corrugated medium, linerboard, T-paper
Basis Weight: 90–170g/m²
Production Capacity: 300t/d
Net Paper Width: 4400mm
Reel Width: 4460mm
Wire Width: 5000mm
Operating Speed: 450m/min
Design Speed: 500m/min
Dynamic Balancing Speed: 600m/min
Center Distance: 5800mm
Roll Dynamic Balance: G1.6
Cylinder Dynamic Balance: G2.5
Balancing Speed: 1800m/min



Full set waste paper recycling corrugated/ fluting paper production line machine can be provided by our company. Email address: leizhanchina@gmail.com.
