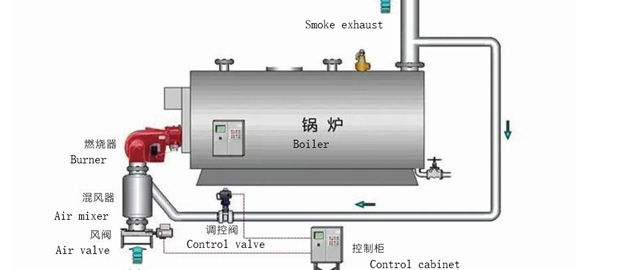

The paper making machine boiler uses light oil or natural gas as fuel. The fuel is sprayed from the burner and ignited by an electronic ignition rod. It burns under slight positive pressure in the furnace. The high-temperature flue gas after combustion turns 180° in the combustion chamber to enter the second pass, and turns 180° from the top of the front smoke box to enter the third pass. After heat exchange by the economizer, it is discharged into the atmosphere through the chimney.



Paper Making Machine Boiler Technical Parameters



1. Rated evaporation capacity: 12t/h
2. Working pressure: 1.25MPa
3. Rated steam temperature: 194℃
4. Feed water temperature: 20℃
5. Radiant heating area: 32.73㎡
6. Convection heating area：242.92㎡
7. Water volume: 14.5m³
8. Natural gas low calorific value: 35.438MJ/Nm
9. Exhaust smoke temperature: 74.6℃
10. Total power consumption: 38.5KW



Paper making machine boiler fo sale, welcome to contact us for more details. Email address: leizhanchina@gmail.com.
