According to the requirements of the buyer, combined with the practical experience of our company, our technical team designed excellent proposal for the buyer. Leizhan provided kraft paper board making line equipment, such as pulper machine, pulp screening machine and pulp cleaning machine, etc. Main specifications of 2400mm fourdrinier kraft board paper machine as follows.

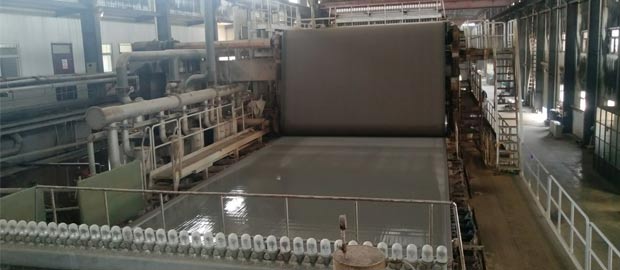

Main Specifications of 2400mm Fourdrinier Kraft Board Paper Machine



Raw material: wood pulp, recycle box.
Paper making variety: kraft paper, testliner paper
Trimmed width: 2400mm
Working speed: 300m/min
Basis weight: 110g/㎡
Capacity: 100t/d



Energy Parameters of 2400mm Kraft Board Paper Machine



AC voltage: 380V/220V±5%
Control voltage: 220V/24V
Frequency: 50HZ±1%
Steam: the highest steam pressure of the dryer: 0.5Mpa
Air source pressure: 0.6-0.8Mpa
Use pressure: ≤0.6Mpa
Supply air temperature: ≤35°C



Leizhan supply complete wood pulp/ recycled box making line machine, included pulper machine, pulp screening machine or pulp refining machine. Want to set kraft paper mill or upgrade old paper production line, weclome to consult us. More details about 2400mm fourdrinier kraft board paper machine, contact us. Email address: leizhanchina@gmail.com.
