OCC is a raw material used to produce packaging paper. OCC pulping line machine include conveying machine, screening machine, cleaning machine and refining machine, etc. Based on the customer’s requirements, we developed a 50T/24H OCC Pulping Line Machine solution.

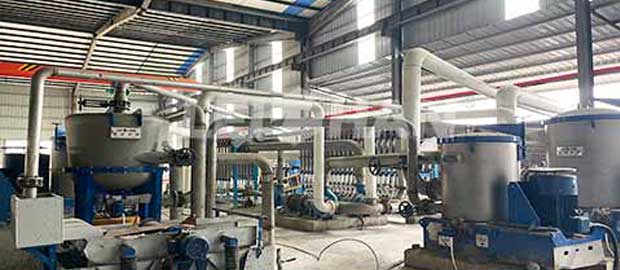

50T/24H OCC Pulping Line Machine Details



D Type Hydrapulper: 10m³, h=10mm, C=3~5%
High Density Cleaner: Q=3000~4500l/min, C=3～5%, P=0.2～0.5MPa
Middle Consistency Coarse Screen: A=0.6m², h=2.4mm, C=1.0%
Reject Separator: Ø380mm, C=1~2%, Ø4mm
Fine Screen: A=0.9m², s=0.25mm, C=1.0%
Double Disc Refiner: 380mm, C=3~5%



If you want to set paper making unit, please feel free to contact us. More info about 50t/24h OCC pulping line machine, please contact. Email address: leizhanchina@gmail.com.
