3500-200 Toilet Paper Machine Felt Washing Device Main Structure

CONTACT US

    toilet-paper-machine

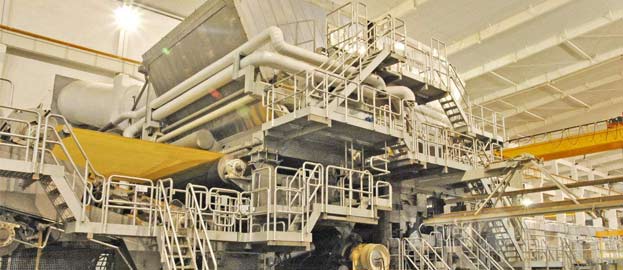

    One of our customer purchased 3500mm toilet paper making machine, here are the main structure description as reference:



    The machine adopts forward pulp hang type to feed pulp. It mainly consists of felt washing, cylinder mould part, drying part, reeling, driving and gas hood. Speed of the equipment is fast and paper quality is good. Easy to operate and no training for a long time. The below article are the details about toilet paper machine felt washing device.



    Felt Washing Device Of Toilet Machine



    1.1. Wet part rack is welding steel or cast iron square box. It is equipped with pneumatic corrector, electric tensioner, suction box, felt washing tank, felt guild roll and so on. Rack goes through annealing treatment.

    1.2 Suction box: 2 sets, box is welded carbon steel and undergoes antiseptic treatment. Panel is high molecular polyethylene

    1.3 Felt washing tank: box is welded carbon steel and undergoes antiseptic treatment.

    1.4 Guild roll Φ293mm×4050mm equipped according to drawing. Lathed steel pipe,δ=16mm. Spindle nose is 45# with thermal refining. Two ends are inlaid with cast iron baffle and has 10mm thickness rubber coating. Bearing 2216, do dynamic balance.

    1.5. Expander roll Φ299mm×4050mm, Lathed steel pipe,δ=16mm. Spindle nose is 45# with thermal refining. Two ends are inlaid with cast iron baffle and has 13mm thickness rubber coating. Two way spiral. Bearing 2216, do dynamic balance.

    1.6. Moving water spray pipe nozzles, electric felt tensioner and pneumatic corrector are equipped according to drawing. End face is equipped with stainless steel breakwater. Moving water spray pipe motor is waterproof.



    Toilet paper making machine in Leizhan is always in high demand, if you have any need, welcome to consult us for more details: leizhanchina@gmail.com.
