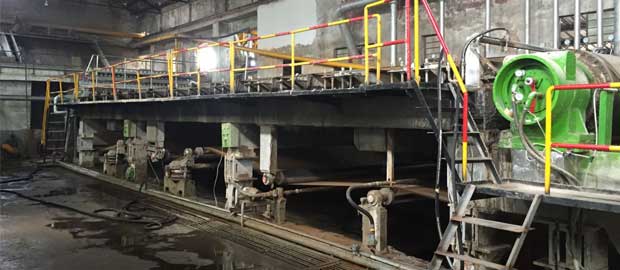

2500mm Multi Wire Corrugated Paper Machine

CONTACT US

    According to the basic conditions required by the customer, combined with the practical experience of the same type of paper machine that has been successfully manufactured, our company calculates and balances the main parameters of the project. For this reason, we recommend to the customer a mature, reliable, economical reasonable paper machine program. Main technical description of 2500mm multi wire corrugated paper machine as below.



    Main Technical Data of 2500mm Corrugated Paper Machine



    Raw material: waste paper
    Capacity: 50t/d
    Trimmed width: 2500mm
    Roll paper width: 2560mm
    Design speed: 200m/min
    Working speed: 90-160m/min
    Dynamic balance vehicle speed: 250m/min, grade G2.5
    Crawling speed: 25m/min
    Gauge: 3600mm



    If you want to know more details about 2500mm multi wire corrugated paper machine, contact us for more details. Email address: leizhanchina@gmail.com.
