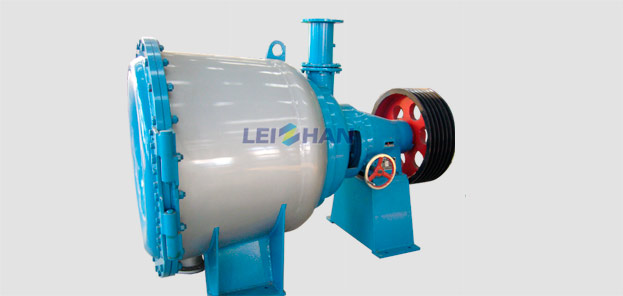

ZDF Series Single Fiber Separator

CONTACT US

    • ZDF Series Single Fiber Separator
    • ZDF Series Single Fiber Separator
    • ZDF Series Single Fiber Separator

    ZDF series single fiber separator is mainly used for secondary breaking and screening of waste paper pulp, meanwhile, separating the light and heavy impurities from pulp. It also can be used as tail pulp treatment equipment.

    >> PDF Download


    • Technical Data
    • Features
    • Working principle
    • Service


    Technical Data of ZDF Series Single Fiber Separator:

    Type ZDF2 ZDF3 ZDF4 ZDF5
    Diameter of Blade(mm) ɸ560 ɸ720 ɸ980 ɸ1100
    Production Capacity(t/d) 30-50 60-80 100-180 165-265
    Pressure of Input Pulp(Mpa) 0.2-0.3
    Concentration of Input Pulp(%) 2.5-4.0
    Power of Motor 37 55 90 110

    • 1. Mainly used for secondary breaking and screening of waste paper pulp, meanwhile, separating the light and heavy impurities from pulp.
    • 2. Specially designed cone structure can better break fiber, and can effectively separate and remove light and heavy impurities.
    • 3. Automatically discharge according to requirement, run reliably.
    • services

      1.Offering comprehensive technical and business consultation services;
      2.Proposing the most suitable scheme and equipment for our clients;
      3.Designing and fabricating targeted products according to the special requirements of clients;
      4.Training periodically high qualified service technician.
