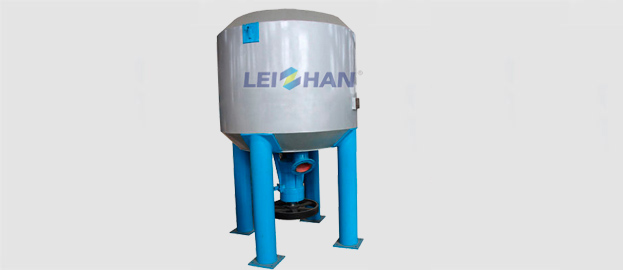

ZDS Series Vertical Hydrapulper

CONTACT US

    • ZDS Series Vertical Hydrapulper
    • ZDS Series Vertical Hydrapulper

    ZDS Series Vertical Hydrapulper is mainly used for breaking pulp board, damage paper and waste paper, etc. in waste paper pulp processing system

    >> PDF Download


    • Technical Data
    • Features
    • Working principle
    • Service


    Technical Data of ZDS Series Vertical Hydrapulper:

    Type ZDS23 ZDS24 ZDS25 ZDS26 ZDS27 ZDS28
    Volume(m2) 5 10 15 20 25 30
    ONP Φ6-Φ10 25-35 45-60 65-80 85-100 110-130 130-150
    COCO Φ10-Φ16 35-50 60-80 80-100 100-130 130-150 150-170
    AOCC Φ6-Φ10 15-25 30-40 45-60 60-75 85-95 95-100
    AOCC Φ10-Φ16 25-35 40-50 60-75 75-90 95-110 110-130
    Chemical wood pulp:Intermittent 13-18 25-30 40-50 50-60 65-85 80-100
    Motor Power(Kw) 55 110 160 185 220 250

    • 1.Used for breaking pulp board, damage paper and waste paper, etc.
    • 2.Energy-saving VOKES rotor strengthens hydraulic circulation and fiber relief, continuously pulping, low energy consumption.
    • Crushed fiber bundles and wet pulp blocks by the rolling of rotor and rotating blades ;
      Rotating blades produce a strong vortex and formed a high speed cyclone zone around the blade, the speed of the pulp are slow down with the gap increase between this region ,so that the pulp layer formed a speed difference, and the fibers separated because of the friction;
      Fiber bundles are separated by rub against each other in the gap of the blade and sieve separation, then good pulp out the pulper through sieve hole;
      The sand, nails and other precipitation debris are accumulation in the miscellaneous mouth of the pulper.;
      The pulper blade made by stainless steel casting or steel production, and imported brands bearing.
    • 1.Offering comprehensive technical and business consultation services;
      2.Proposing the most suitable scheme and equipment for our clients;
      3.Designing and fabricating targeted products according to the special requirements of clients;
      4.Training periodically high qualified service technician.
