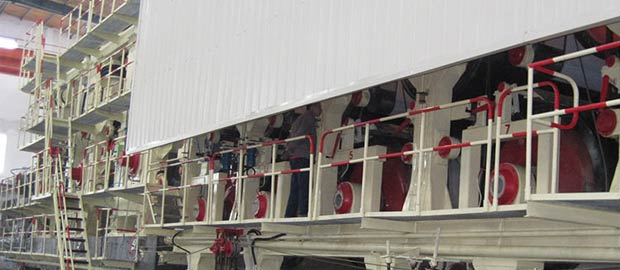

2500mm single wire fluting paper machine to make 80-140g/㎡ high strength fluting paper. Final paper products are fluting paper roll. 2500mm single wire fluting paper machine consists of wire part, press part, drying part, reeling part, etc. Unit fluting paper production line machine can be provided by our company.



Main Technical Data of 2500mm Single Wire Fluting Paper Machine



Main products: High-strength corrugated medium, etc.
Basis weight range: 80–140g/m²
Trimmed width: 2500mm
Production capacity: 150t/d
Operating speed: 250–280m/min
Design speed: 350m/min
Dynamic balance speed: 450m/min
Wire width: 3000mm
Headbox slice width: 2850mm
Rail gauge: 3600mm
Drive system: Sectional drive with AC motor variable frequency control
Layout: Single-level
Configuration: Right-hand machine
Pulp furnish: Waste paper



Leizhan Paper Machinery Company supply 2500mm single wire fluting paper machine. Welcome to contact us for more details. Email address: leizhanchina@gmail.com.
