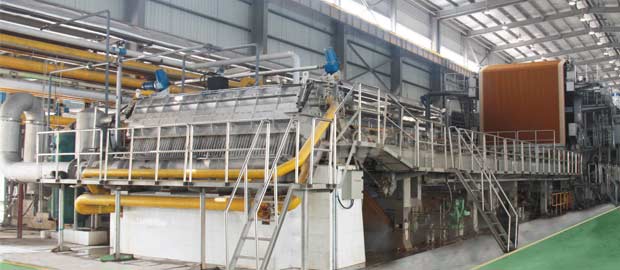

4300mm corrugated paper machine to make 80-240g/㎡ corrugated paper. The paper machine consists of wire part, press part, drying part and reeling part.



4300mm Corrugated Paper Machine Main Structure



1. Forming wire part: air cushion headbox is used for sizing, and double-layer mesh forming is employed.
2. Press part: one vacuum suction transfer Φ600, two double-blanket large-diameter roller presses.
3. Drying part: 1 paper feed cylinder (Φ1500mm), 3 UNO cylinders (Φ1500mm), 35 drying cylinders (Φ1800mm)
4. Reeling part: simple roller horizontal paper winding machine.



Main Technical Parameters of 4300mm Corrugated Paper Machine



Papermaking varieties: Kraft paper
Raw material: waste paper
Papermaking basis: 80-240g/m²
Trimmed width: 4300mm
Production capacity: 300tpd
Rolled paper width: 4360mm
Headbox lip width: 4650mm
Design speed: 500m/min
Balance speed: 600m/min
Working speed: 400-450m/min
Crawling speed: 25m/min Speed: 25m/min
Gauge: 5500mm



High quality 4300mm corrugated paper machine for sale. Welcome to contact us for more details. Email address: leizhanchina@gmail.com.
