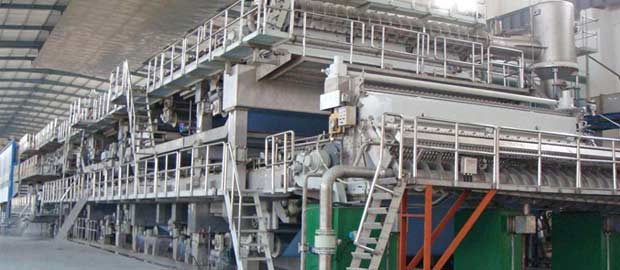

3600/600 Fourdrinier Multi Cylinder Cultural Paper Machine

Main technical datas of 3600/600 fourdrinier multi cylinder cultural paper machine as below.



1. Product Varieties: Lightweight paper, lightly coated paper, and various other cultural papers
2. Paper Weight: 50-100g/m² (calculated basis weight 80g/m²)
3. Trimmed Width: 3600mm
4. Roll Width: 3660mm
5. Nozzle Width: 3920mm
6. Wire Width: 4150mm
7. Working Speed: 600m/min
8. Design Speed: 700m/min
9. Dynamic Balancing Speed: 900m/min
10. Crawling Speed: 25m/min



Process and Technical Conditions of 3600/600 Fourdrinier Multi Cylinder Cultural Paper Machine



1. Pulp Mix: Lightweight Paper: 15% Softwood Pulp, 40% Softwood Chemical Pulp, 45% Hardwood Chemical Pulp
2. Pure Paper: 15% Softwood Chemical Pulp, 40% Hardwood Chemical Pulp, 45% Hardwood Chemical Pulp
3. Pulp Concentration: 0.6–0.9%
4. Sizing: 2.5–5 g/m²/double-sided
5. Coating: 5–8 g/m²/single-sided
6. Sizing Concentration: 10%–15%
7. Coating Solids Content: 55%–60%
8. Dryness before sizing: ≥97%
9. Dryness after sizing: ≥70%



Wire and felt tension of 3600/600 Fourdrinier Multi Cylinder Cultural Paper Machine



Formed mesh: 8kN/m
Felt: 6kN/m
Drying wire: 6kN/m



The final and confirmed plan is as above. Welcome to consult us for more information. Email address: leizhanchina@gmail.com.
