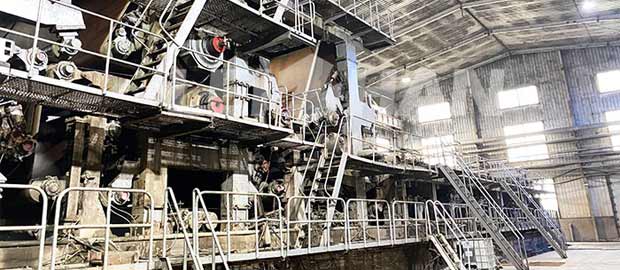

The 200Tpd three layer kraft paper machine adopts air cushion headbox, the forming section adopts three wire forming, the press section adopts a vacuum suction device, a vacuum press and two large roller presses, and adopts a hydraulic pressure system. The drying section adopts a single gear box drive and a square box frame. The 200Tpd kraft paper machine adopts a semi-enclosed steam hood and a full digital frequency conversion control system.



Main Specifications of 200Tpd Three Layer Kraft Paper Machine



Raw material: wood pulp, waste paper
Main products: kraft liner paper, corrugated paper
Trimmed width: 2500mm
Basis weight: 127-300g/㎡
Capacity: 200tpd
Design speed: 500m/min
Working speed: 350-440m/min
Crawling speed: 25m/min
Dynamic balance speed: 550m/min
Wire width: 2950mm
Gauge: 3500mm



More info about 200tpd three layer kraft paper machine, please feel free to contact us. Email address: leizhanchina@gmail.com.
