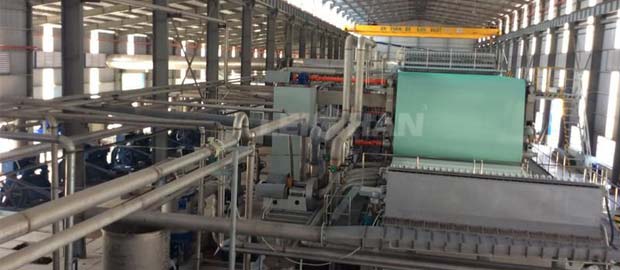

200T kraft paper making machine uses an air-cushion headbox, the forming section uses a three wire forming system, and the press section employs a structure consisting of one vacuum suction device, one vacuum press, and two large-diameter roll presses, all powered by a hydraulic pressurization system. The drying section uses a single-tooth box drive and a square box-type frame.



Main Technical Data of 200T Kraft Paper Making Machine



Raw material: wood pulp, waste paper
Trimmed width: 2500mm
Basis weight: 127-300g/㎡
Production capacity: 200t/d
Design speed: 500m/min
Working speed: 350-440m/min
Crawling speed: 25m/min
Dynamic balancing speed: 550m/min
Wire width: 2950mm
Headbox lip width: 2800mm
Gauge: 3500mm



200t kraft paper making machine for sale, Leizhan company supply complete kraft paper production line machine include pulper machine, screening machine, cleaning machine and refining machine, etc. Welcome to contact us for more details. Email address: leizhanchina@gmail.com.
