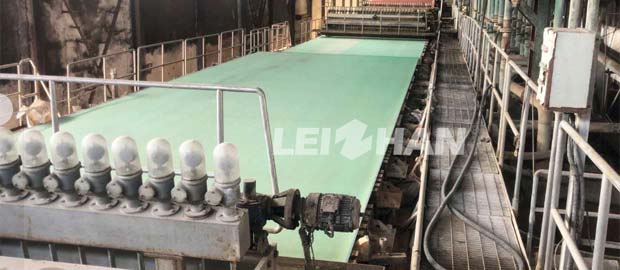

4300/250 kraft paper machine is composed of cylinder wire part, press part, drying part and reeling part. 4300/250 kraft paper machine use multi wire multi cylinder paper machine type.



The cylinder wire part of 4300/250 multi wire multi cylinder uses five φ1800 cylinder wire forming presses for sizing and vacuum return rolls. The press part employs one vacuum press and two large-diameter presses, utilizing a hydraulic pressurization system. The drying part uses a square box-type frame with good ventilation, and the paper machine uses a semi-open steam hood.



Main Technical Parameter of 4300/250 Kraft Paper Machine



Main Products: Kraft Paper
Raw Material: 100% Waste Paper
Output: 240T/D
Basis Weight Range: 100-300g/m²
Trimmed Width: 4300mm
Design Speed: 250m/min
Operating Speed: 200m/min
Crawling Speed: 25m/min
Gauge: 5400mm
Transmission Method: AC Variable Frequency Speed ​​Control Sub-drive
Floor Layout: Single Layer
