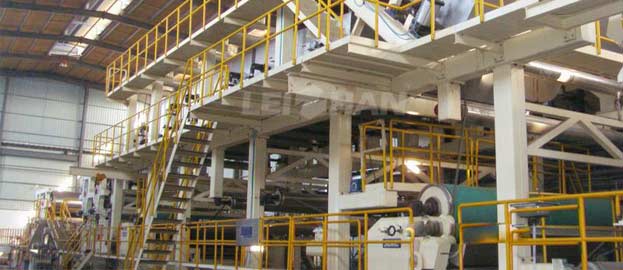

    4300mm Multi-Layer Multi-Cylinder Coating Board Making Machine

    Our customer from Russia want to produce coated paper, and according to the requirement of high grade coated white cardboard making, we designed five set headbox, five layers, vacuum press, big rolls press, light press, dryer part, coating part, etc. The details of coating white cardboard making machine as following.



    Coated White Cardboard Making Machine



    Main product: A grade coating white board paper
    Raw material: top layer: commercial wood
    medium layer: waste office paper deinking pulp
    bottom layer: OCC, ONP
    Basis weight: 200-400gsm
    Paper net width: 4300mm
    Working speed: 350m/min
    Design speed: 500m/min
    Dynamic balance speed: 550m/min
    Wire width: 4850mm
    Gauge: 5700mm
    Floor layout: Double floor
    Arrangement method: right hand



    We provide the turn-key coating whiteboard paper making project, include the conveyor, pulper, pressure screen, pulp cleaner, pulp refiner, pulp tailing dealing device, pulp approaching system machine, and coating board paper making machine anf rewinder, etc, welcome to consult us for more details: leizhanchina@gmail.com
